Description
| Drive supported |
8, 16, or 24 SFF SAS/SATA/SSD/NVMe, depending on configuration
|
| Processor type | Intel® |
| Processor family |
4th Generation Intel® Xeon® Scalable Processors
|
| Processor core available |
8 to 60 core, depending on processor.
|
| Processor cache |
22.5 MB to 112.5 MB L3, depending on processor.
|
| Processor number | 2 or 4 |
|
Processor Model
|
Platinum 8490H Processor 1.9GHz 60 112.5 350W 4/3 4800 MT/s 512
|
|
Platinum 8490H Processor 1.9GHz 60 112.5 350W 4/3 4800 MT/s 512
|
|
|
Platinum 8460H Processor 2.2GHz 40 105 330W 4/3 4800 MT/s 512
|
|
|
Platinum 8450H Processor 2.0GHz 28 75 250W 4/3 4800 MT/s 512
|
|
|
Platinum 8444H Processor 2.9GHz 16 45 270W 4/3 4800 MT/s 512
|
|
|
Gold 6434H Processor 3.7GHz 8 22.5 195W 4/3 4800 MT/s 512
|
|
|
Gold 6416H Processor 2.2GHz 18 45 165W 4/3 4800 MT/s 512
|
|
| Processor speed |
3.7 GHz maximum, depending on processor.
|
| Memory type |
HPE DDR5 SmartMemory
|
| Memory slots | 64 |
| Maximum memory |
16 TB with 256 GB DDR5
|
| Memory protection features |
RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC); Intel Optane Persistent Memory
|
| DIMM capacity | 16 GB to 256 GB |
| Optical drive type |
Optional DVD-ROM Optional via Universal Media Bay External support only.
|
| Security |
HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit.
|
| Power supply type |
HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM.
|
| Expansion slots |
800W, 1000W, 1600W or 2200W Dual hot-plug redundant 1+1 redundant or 2+2 redundant or 3+1 redundant and 4+0 redundant, depending on model.
|
| Network controller |
1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor; for detailed descriptions reference the QuickSpecs.
|
|
Storage controller
|
HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller,
|
|
HPE SR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller,
|
|
|
HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller,
|
|
|
HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller,
|
|
|
HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller,
|
|
|
HPE SR308i-p Gen11 x8 Lanes 2GB Cache PCI Plug-in Storage Controller,
|
|
|
HPE SR308i-o Gen11 x8 Lanes 2GB Cache OCP Storage Controller,
|
|
|
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller,
|
|
|
HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller,
|
|
| System fan features |
Liquid cooling solution, Hot-plug redundant fans, Performance Fan Kit or High Performance Fan Kit, depending on model.
|
| Warranty3/3/3 |
Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support
|
For more information view the datasheet

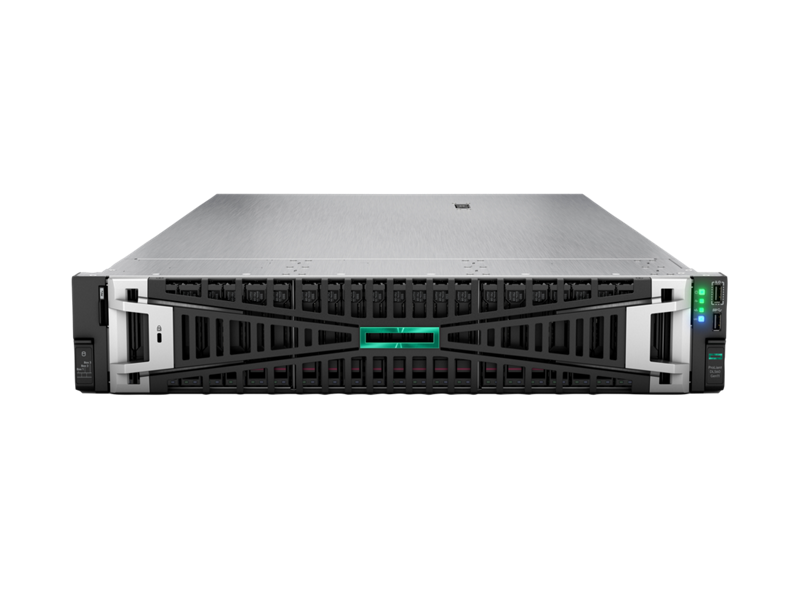

Features of HPE ProLiant DL560 Gen11 Server
The HPE ProLiant DL560 Gen11 server is a high-density, four-socket (4S) server that offers high performance, scalability, and reliability, all in a 2U chassis. It is powered by 4th Generation Intel® Xeon® Scalable Processors with 8 to 60 cores, depending on the processor. The server can support up to 16 TB of memory with 256 GB DDR5 SmartMemory. It also has 64 memory slots with RAS (Reliability, Availability, and Serviceability) features such as Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC). The server can support up to 24 SFF SAS/SATA/SSD/NVMe drives depending on the configuration. The server has up to 6 PCIe Gen5 and 2 OCP 3.0 expansion slots for improved I/O throughput and reduced latency. The server comes with HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard), HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM for infrastructure management. The server has 800W, 1000W, 1600W or 2200W Dual hot-plug redundant power supply options. The server also has liquid cooling solution and hot-plug redundant fans. The server comes with a 3/3/3 warranty which includes three years of parts, three years of labor, and three years of onsite support coverage.
