Description
| Brand | HP Enterprise |
| Model |

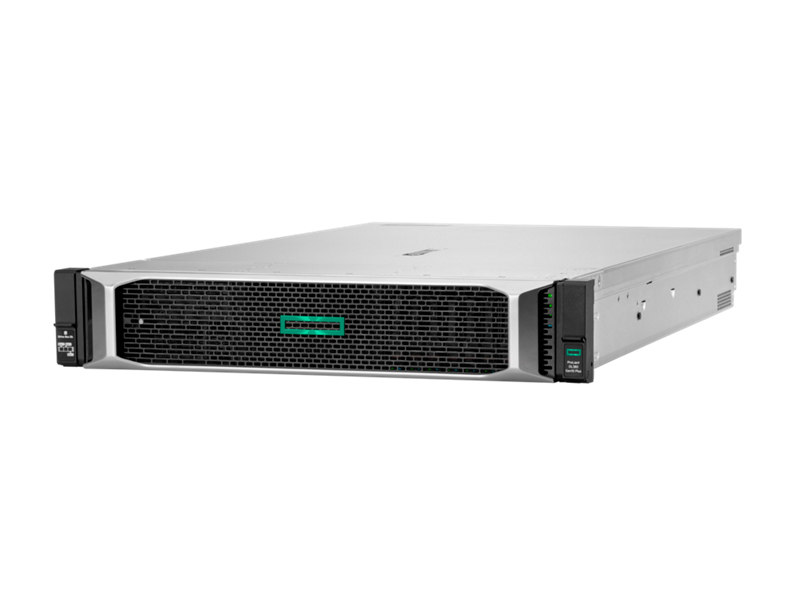

HPE DL380 Gen10 Plus CTO Server
|
| Country of Origin | USA |
| Country of Manufacture | Singapore |
| Processor |
2 x Intel Xeon-Silver 4310 2.1GHz 12-core 120W Processor for HPE
|
| Chipset |
Intel C621A Chipset
|
| Memory (RAM) |
64GB (2 x 32GB ) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
|
| Hard Disk Drive |
4 X HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
|
| Cache Memory | 18 MB L3 Cache |
| Storage Controller |
Broadcom MegaRAID MR416i-a x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus
|
| Storage Battery and Cable |
HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
|
| Riser Kit |
HPE ProLiant DL380 Gen10 Plus x8/x16/x8 Primary FIO Riser Kit
|
| Network Interface Card |
Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
|
| Graphics |
Video modes up to 1920 x 1200@60Hz (32 bpp) 16MB Video Memory
|
| Power Supply |
2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
|
| System Fan(s) |
Hot-plug fans, 4 with single Processor and 6 with dual processor
|
| Expansion Slots |
Up to 8 PCIe slots
|
| Media Bays |
Standard: 8 SFF SAS/SATA HDD Bays; Upgradable up to 16 or 24 SFF SAS/SATA HDD
|
| Interfaces |
Serial: Optional, rear . Display Port: 1 optional front display port via Universal Media Bay.VGA: 1 standard, rear for all chassis. Network Ports : 4 x 1GbE embedded . HPE iLO Remote Management Network Port : 1 Gb Dedicated Rear. Front iLO Service Port : 1 standard . Micro SD Slot : Optional via HPE 32GB microSD RAID1 USB Boot Device . USB 3.0 : Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis . SID (Systems Insight Display) : Optional
|
| Remote Management |
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features
|
| OS Support |
3rd Generation Intel® Xeon® Scalable Processor Family
Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2016 & 2019 VMware vSphere 6.7 U3 w/P03, 7.0 U2 Red Hat Enterprise Linux (RHEL) 7.9 & 8.2 - Includes KVM SUSE Linux Enterprise Server (SLES) 12 SP5, 15 SP2 (includes Xen & KVM) Ubuntu 20.04 LTS Oracle Linux 7.9 (UEK5 and UEK6) |
|
Security
|
Secure Boot and Secure Start enable for enhanced security
|
|
Embedded UEFI Shell
|
|
|
Operating system specific functionality
|
|
|
Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
|
|
|
Support for > 2.2 TB (using GPT) boot drives
|
|
|
PXE boot support for IPv6 networks
|
|
| USB 3.0 Stack | |
|
Workload Profiles for simple performance optimization
|
|
|
UEFI Boot Mode only:
|
|
|
TPM 2.0 Support
|
|
|
iSCSI Software Initiator Support.
|
|
|
NVMe Boot Support
|
|
|
HTTP/HTTPs Boot support as a PXE alternative.
|
|
|
Platform Trust Technology (PTT) can be enabled.
|
|
|
Boot support for option cards that only support a UEFI option ROM
|
|
| Industry Standard Compliance |
ACPI 6.3 Compliant , PCIe 4.0 Compliant , WOL Support Microsoft® Logo certifications , PXE Support
VGA/Display Port, USB 3.0 Compliant (internal) USB 2.0 Compliant (external ports via SUV), Energy Star SMBIOS 3.2,Redfish API , IPMI 2.0 , Secure Digital 4.0 , TPM 1.20 and 2.0 Support , Advanced Encryption Standard (AES), Triple Data Encryption Standard (3DES) , SNMP v3 , TLS 1.2, DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), Active Directory v1.0, ASHRAE A3/A4, EU Lot9, UEFI (Unified Extensible Firmware Interface Forum) 2.6, |
| Form Factor |
2U Rack form factor, Easy Install rail kit.
|
| Warranty |
HPE 3Y Tech Care Basic Service
|
Features of HPE Proliant DL380 G10 Plus 2xIntel Xeon-Silver 4310 2x12c CTO Server
-
HPE Proliant DL380 G10 Series: The HPE Proliant DL380 Gen10 is a popular and versatile server platform designed for various enterprise workloads. Here are some of the common features you might expect from this series:
-
Processor Support: The DL380 Gen10 typically supports a wide range of Intel Xeon Scalable processors, including dual-socket configurations.
-
Memory: It offers a large memory capacity with support for DDR4 memory modules and multiple memory slots. The exact memory capacity can vary based on the specific configuration.
-
Storage: The DL380 G10 series offers various storage options, including support for SAS/SATA HDDs and SSDs, NVMe SSDs, and flexible storage controllers.
-
Expansion Slots: It comes with PCIe slots for expansion cards, including network adapters, storage controllers, and GPU accelerators.
-
Management: HPE servers often include integrated management features like iLO (Integrated Lights-Out) for remote server management and monitoring.
-
Form Factor: The DL380 Gen10 is typically available in a 2U rack-mountable form factor.
-
-
Intel Xeon Silver 4310 Processor:
-
Processor Cores: The Intel Xeon Silver 4310 is a processor that features 12 physical cores per socket, so in a dual-socket server, you would have a total of 24 cores.
-
Clock Speed: The clock speed and other specifications can vary, so you'd need to check the exact specifications for this particular processor.
-
Cache: The processor should have a significant amount of cache memory, including both L2 and L3 cache.
-
Architecture: It's based on Intel's Xeon Scalable processor architecture, designed for server and data center use.
-
TDP (Thermal Design Power): The TDP of the processor would be specified, indicating its power consumption and thermal characteristics.
-
What is the Price of HPE Proliant DL380 G10 Plus 2xIntel Xeon-Silver 4310 2x12c CTO Server in Bangladesh?
To know The latest price of HPE Proliant DL380 G10+ 2xIntel Xeon-Silver 4310 2x12c CTO Server in Bangladesh Contact With Us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
