Description
| Brand | HP Enterprise |
| Model |

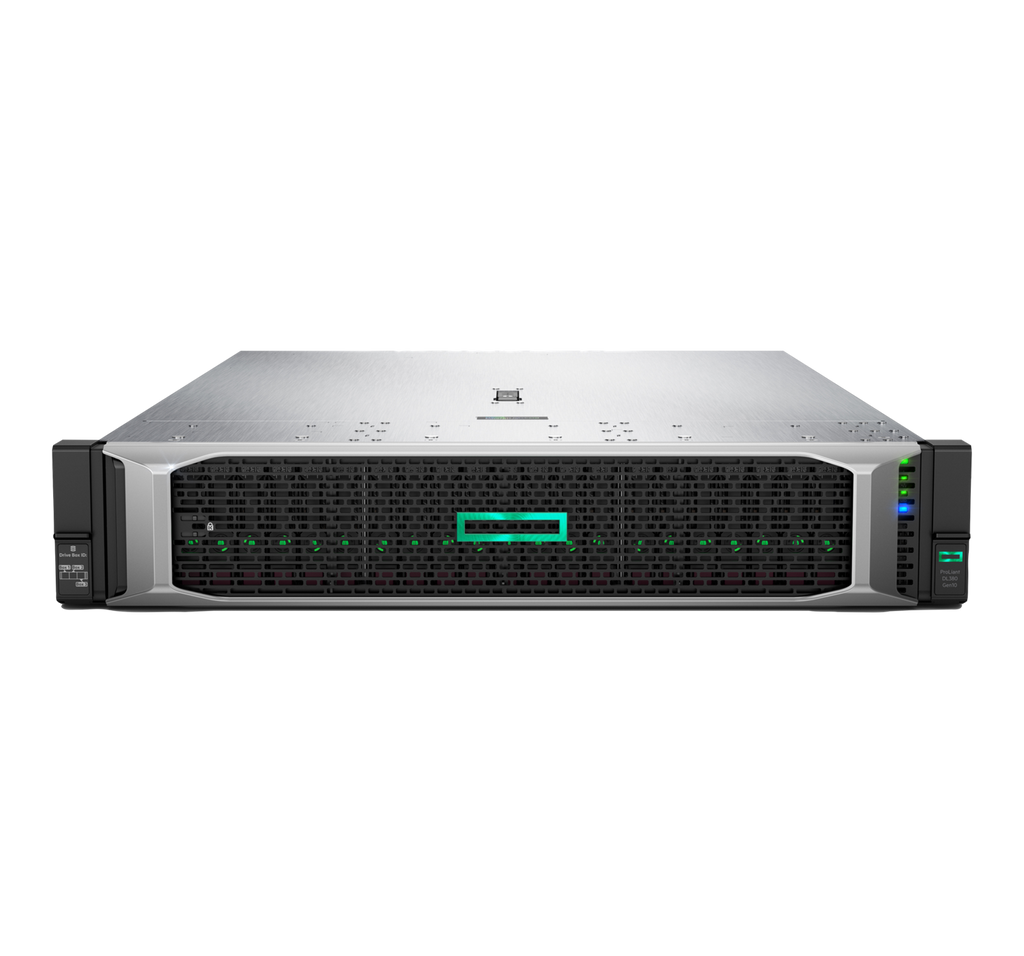

HPE DL380 Gen10 Plus CTO Server
|
| Country of Origin | USA |
| Country of Manufacture | Singapore |
| Processor |
2 x Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W Processor for HPE
|
| Chipset |
Intel C621A Chipset
|
| Memory (RAM) |
64GB (2 x 32GB ) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
|
| Hard Disk Drive |
4 X HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
|
| Cache Memory | 12 MB L3 Cache |
| Storage Controller |
Broadcom MegaRAID MR416i-a x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus
|
| Storage Battery and Cable |
HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
|
| Riser Kit |
HPE ProLiant DL380 Gen10 Plus x8/x16/x8 Primary FIO Riser Kit
|
| Network Interface Card |
Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
|
| Graphics |
Video modes up to 1920 x 1200@60Hz (32 bpp) 16MB Video Memory
|
| Power Supply |
2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
|
| System Fan(s) |
Hot-plug fans, 4 with single Processor and 6 with dual processor
|
| Expansion Slots |
Up to 8 PCIe slots
|
| Media Bays |
Standard: 8 SFF SAS/SATA HDD Bays; Upgradable up to 16 or 24 SFF SAS/SATA HDD
|
| Interfaces |
Serial: Optional, rear . Display Port: 1 optional front display port via Universal Media Bay.VGA: 1 standard, rear for all chassis. Network Ports : 4 x 1GbE embedded . HPE iLO Remote Management Network Port : 1 Gb Dedicated Rear. Front iLO Service Port : 1 standard . Micro SD Slot : Optional via HPE 32GB microSD RAID1 USB Boot Device . USB 3.0 : Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis . SID (Systems Insight Display) : Optional
|
| Remote Management |
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features
|
| OS Support |
3rd Generation Intel® Xeon® Scalable Processor Family
Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2016 & 2019 VMware vSphere 6.7 U3 w/P03, 7.0 U2 Red Hat Enterprise Linux (RHEL) 7.9 & 8.2 - Includes KVM SUSE Linux Enterprise Server (SLES) 12 SP5, 15 SP2 (includes Xen & KVM) Ubuntu 20.04 LTS Oracle Linux 7.9 (UEK5 and UEK6) |
|
Security
|
Secure Boot and Secure Start enable for enhanced security
|
|
Embedded UEFI Shell
|
|
|
Operating system specific functionality
|
|
|
Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
|
|
|
Support for > 2.2 TB (using GPT) boot drives
|
|
|
PXE boot support for IPv6 networks
|
|
| USB 3.0 Stack | |
|
Workload Profiles for simple performance optimization
|
|
|
UEFI Boot Mode only:
|
|
|
TPM 2.0 Support
|
|
|
iSCSI Software Initiator Support.
|
|
|
NVMe Boot Support
|
|
|
HTTP/HTTPs Boot support as a PXE alternative.
|
|
|
Platform Trust Technology (PTT) can be enabled.
|
|
|
Boot support for option cards that only support a UEFI option ROM
|
|
| Industry Standard Compliance |
ACPI 6.3 Compliant , PCIe 4.0 Compliant , WOL Support Microsoft® Logo certifications , PXE Support
VGA/Display Port, USB 3.0 Compliant (internal) USB 2.0 Compliant (external ports via SUV), Energy Star SMBIOS 3.2,Redfish API , IPMI 2.0 , Secure Digital 4.0 , TPM 1.20 and 2.0 Support , Advanced Encryption Standard (AES), Triple Data Encryption Standard (3DES) , SNMP v3 , TLS 1.2, DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), Active Directory v1.0, ASHRAE A3/A4, EU Lot9, UEFI (Unified Extensible Firmware Interface Forum) 2.6, |
| Form Factor |
2U Rack form factor, Easy Install rail kit.
|
| Warranty |
HPE 3Y Tech Care Basic Service
|
Features of HPE Proliant DL380 G10 Plus Intel Xeon-Silver(Dual) 4309Y 2x8c CTO Server
-
Processor Options: The DL380 series typically supports a wide range of Intel Xeon processors. The exact processor options may vary depending on the model and configuration.
-
Memory: These servers typically have a large number of DIMM slots, allowing for a significant amount of RAM to be installed. Memory capacity can vary based on the configuration.
-
Storage: The DL380 series typically supports multiple drive bays for 2.5" or 3.5" SAS/SATA hard drives or SSDs. It may also have options for NVMe SSDs for faster storage.
-
RAID Controller: Integrated RAID controllers or optional RAID cards are often available to configure and manage storage in various RAID levels for redundancy and performance.
-
Networking: These servers typically come with multiple Gigabit Ethernet ports and may have options for 10Gb or 25Gb Ethernet adapters. They might also support various networking features like NIC teaming and VLAN support.
-
Expansion Slots: The DL380 series servers usually offer multiple PCIe expansion slots to add additional network cards, storage controllers, or other expansion cards.
-
Remote Management: HPE iLO (Integrated Lights-Out) technology provides remote management capabilities, including remote access to the server's console and monitoring of hardware health.
-
Redundancy: They often include redundant power supplies and cooling fans for increased reliability and uptime.
-
Form Factor: The DL380 series typically comes in a 2U rack-mounted form factor, making them suitable for data center environments.
-
Security: These servers often include security features such as TPM (Trusted Platform Module) for hardware-based encryption and secure boot options.
-
Management Software: HPE provides management software for monitoring and configuring these servers, making it easier to manage them in data center environments.
-
Operating System Support: They are usually compatible with various operating systems, including Windows Server, Linux distributions, and virtualization platforms like VMware and Hyper-V.
What is the Price of HPE Proliant DL380 G10 Plus Intel Xeon-Silver(Dual) 4309Y 2x8c CTO Server in Bangladesh?
To know The latest price of HPE Proliant DL380 G10 Plus Intel Xeon-Silver(Dual) 4309Y 2x8c CTO Server in Bangladesh Contact With Us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
