Description
| Brand | HP Enterprise |
| Model |

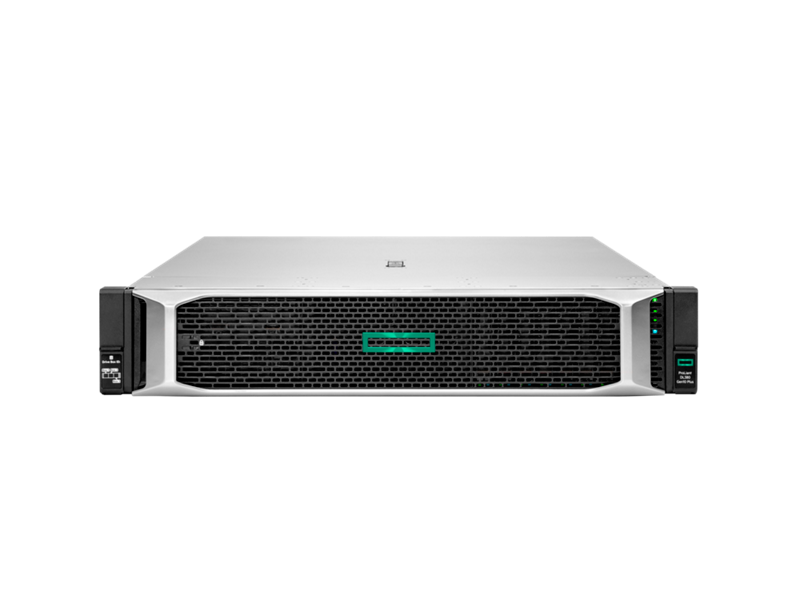

HPE DL380 Gen10 Plus CTO Server
|
| Country of Origin | USA |
| Country of Manufacture | Singapore |
| Processor |
1 x Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W Processor for HPE
|
| Chipset |
Intel C621A Chipset
|
| Memory (RAM) |
64GB (2 x 32GB ) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
|
| Hard Disk Drive |
4 X HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
|
| Cache Memory |
12 MB L3 Cache
|
| Storage Controller |
Broadcom MegaRAID MR416i-a x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus
|
| Storage Battery and Cable |
HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
|
| Riser Kit |
HPE ProLiant DL380 Gen10 Plus x8/x16/x8 Primary FIO Riser Kit
|
| Network Interface Card |
Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
|
| Graphics |
Video modes up to 1920 x 1200@60Hz (32 bpp) 16MB Video Memory
|
| Power Supply |
2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
|
| System Fan(s) |
Hot-plug fans, 4 with single Processor and 6 with dual processor
|
| Expansion Slots |
Up to 8 PCIe slots
|
| Media Bays |
Standard: 8 SFF SAS/SATA HDD Bays; Upgradable up to 16 or 24 SFF SAS/SATA HDD
|
| Interfaces |
Serial: Optional, rear . Display Port: 1 optional front display port via Universal Media Bay.VGA: 1 standard, rear for all chassis. Network Ports : 4 x 1GbE embedded . HPE iLO Remote Management Network Port : 1 Gb Dedicated Rear. Front iLO Service Port : 1 standard . Micro SD Slot : Optional via HPE 32GB microSD RAID1 USB Boot Device . USB 3.0 : Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis . SID (Systems Insight Display) : Optional
|
| Remote Management |
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features
|
| OS Support |
3rd Generation Intel® Xeon® Scalable Processor Family
Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2016 & 2019 VMware vSphere 6.7 U3 w/P03, 7.0 U2 Red Hat Enterprise Linux (RHEL) 7.9 & 8.2 - Includes KVM SUSE Linux Enterprise Server (SLES) 12 SP5, 15 SP2 (includes Xen & KVM) Ubuntu 20.04 LTS Oracle Linux 7.9 (UEK5 and UEK6) |
|
Security
|
Secure Boot and Secure Start enable for enhanced security
|
|
Embedded UEFI Shell
|
|
|
Operating system specific functionality
|
|
|
Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
|
|
|
Support for > 2.2 TB (using GPT) boot drives
|
|
|
PXE boot support for IPv6 networks
|
|
| USB 3.0 Stack | |
|
Workload Profiles for simple performance optimization
|
|
|
UEFI Boot Mode only:
|
|
|
TPM 2.0 Support
|
|
|
iSCSI Software Initiator Support.
|
|
|
NVMe Boot Support
|
|
|
HTTP/HTTPs Boot support as a PXE alternative.
|
|
|
Platform Trust Technology (PTT) can be enabled.
|
|
|
Boot support for option cards that only support a UEFI option ROM
|
|
| Industry Standard Compliance |
ACPI 6.3 Compliant , PCIe 4.0 Compliant , WOL Support Microsoft® Logo certifications , PXE Support
VGA/Display Port, USB 3.0 Compliant (internal) USB 2.0 Compliant (external ports via SUV), Energy Star SMBIOS 3.2,Redfish API , IPMI 2.0 , Secure Digital 4.0 , TPM 1.20 and 2.0 Support , Advanced Encryption Standard (AES), Triple Data Encryption Standard (3DES) , SNMP v3 , TLS 1.2, DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), Active Directory v1.0, ASHRAE A3/A4, EU Lot9, UEFI (Unified Extensible Firmware Interface Forum) 2.6, |
| Form Factor |
2U Rack form factor, Easy Install rail kit.
|
| Warranty |
HPE 3Y Tech Care Basic Service
|
Features of HPE DL380 Gen10 Plus CTO Server
-
Processor Options: The DL380 Gen10 Plus supports a range of Intel Xeon Scalable processors, providing a variety of performance and core count options.
-
Memory: It supports DDR4 memory modules, and the capacity can vary depending on the configuration. Typically, it offers a large memory capacity to handle demanding workloads.
-
Storage: The server has multiple drive bays and supports a variety of storage options, including SAS, SATA, and NVMe drives. It may also support HPE's Smart Array controllers for RAID configurations.
-
Expansion Slots: The DL380 Gen10 Plus typically includes several PCIe expansion slots for adding additional cards like network adapters, GPU accelerators, or other specialized hardware.
-
Networking: It comes with multiple Gigabit Ethernet ports as standard, and some configurations may offer 10 Gigabit or even higher-speed network options. HPE's FlexibleLOM (LAN-on-Motherboard) technology allows for flexibility in network connectivity.
-
Management: HPE's Integrated Lights Out (iLO) management technology is usually included, providing remote management capabilities, including remote console access and monitoring.
-
Security: HPE servers often include security features such as Trusted Platform Module (TPM) for hardware-based security, and options for enhanced security and encryption.
-
Redundancy: The server is designed for reliability and may include features like hot-swappable power supplies and fans to minimize downtime.
-
Form Factor: The DL380 Gen10 Plus typically comes in a 2U rack-mountable form factor, making it suitable for data center environments.
-
Operating System Support: It is compatible with various operating systems, including Windows Server, Linux distributions, and virtualization platforms like VMware and Hyper-V.
-
Remote Management: HPE's iLO technology allows for remote management and monitoring of the server, even when the server is powered off or experiencing issues.
-
Energy Efficiency: HPE often includes features to optimize power usage, such as power capping and dynamic power allocation, to help reduce operating costs.
-
Customization: The "CTO" (Configure-to-Order) designation means that you can customize the server to meet your specific requirements by selecting the desired components during the ordering process.
What is the Price of HPE DL380 Gen10 Plus CTO Server in Bangladesh?
To know The latest price of HPE DL380 Gen10 Plus CTO Server in Bangladesh Contact With Us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
