Description
| Model Number | Dell T954J |
| Interface | SAS (Serial Attached SCSI) |
| RAID Levels Supported |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
|
| Cache Memory | 256MB DDR2 |
| Data Transfer Rate | Up to 3 Gbps (SAS) |
| Number of Supported Devices | Up to 32 SAS and SATA drives |
| Disk Interface Support |
SAS (Serial Attached SCSI) and SATA (Serial ATA)
|
| Drive Types Supported |
3.5-inch and 2.5-inch SAS and SATA hard drives
|
| Hot-Swapping Support | Yes, hot-swappable drive support |
| RAID Management Software | Dell OpenManage Storage Manager |
| RAID Rebuild and Migration Support |
Yes, supports automatic RAID rebuild and migration
|
| Battery Backup Unit (BBU) Support |
Optional battery backup unit for cache protection
|
| Compatibility |
Compatible with various Dell PowerEdge server models
|
| Operating System Support |
Compatible with various Windows, Linux, and VMware systems
|
Features of Dell T954J PERC 6/i SAS RAID Controller

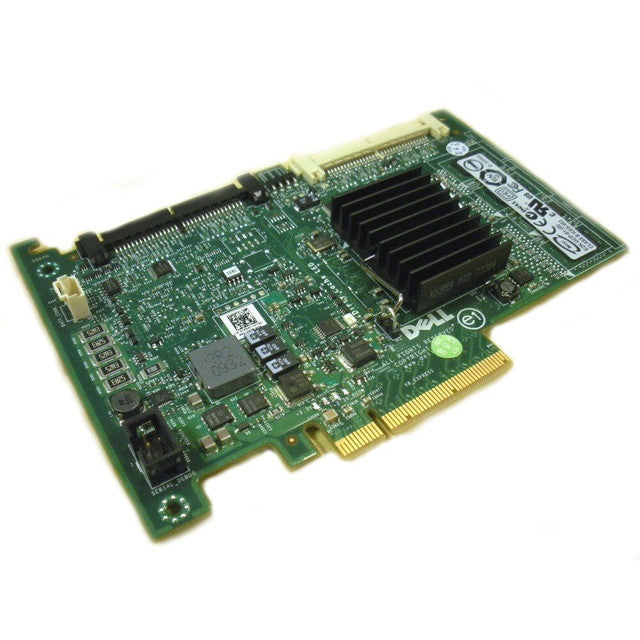

The Dell T954J PERC 6/i SAS RAID Controller is a hardware RAID (Redundant Array of Independent Disks) controller manufactured by Dell. It is designed to manage and control the connection and operation of SAS (Serial Attached SCSI) and SATA (Serial ATA) drives in a server or workstation environment.
Key features of the Dell T954J PERC 6/i SAS RAID Controller include:
-
RAID Support: It supports various RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. RAID allows you to combine multiple hard drives into an array for improved performance, data redundancy, or a combination of both.
-
SAS and SATA Compatibility: The controller is compatible with both SAS and SATA hard drives, offering flexibility in drive selection and deployment.
-
Cache Memory: It typically comes with onboard cache memory to enhance performance. The cache memory helps in accelerating read and write operations, which can significantly improve overall RAID performance.
-
Battery Backup Unit (BBU): The PERC 6/i often includes an optional Battery Backup Unit (BBU) to protect cached data in case of a power outage. The BBU provides temporary power to the cache, allowing it to write cached data to disk even during power loss, reducing the risk of data loss and corruption.
-
Dell OpenManage Software: Dell's OpenManage software suite allows users to monitor and manage the RAID controller and connected drives, enabling configuration, monitoring, and maintenance tasks.
What is the price of Dell T954J PERC 6/i SAS RAID Controller in Bangladesh?
To know the latest price of Dell T954J PERC 6/i SAS RAID Controller in BD contact with us. To buy this please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
