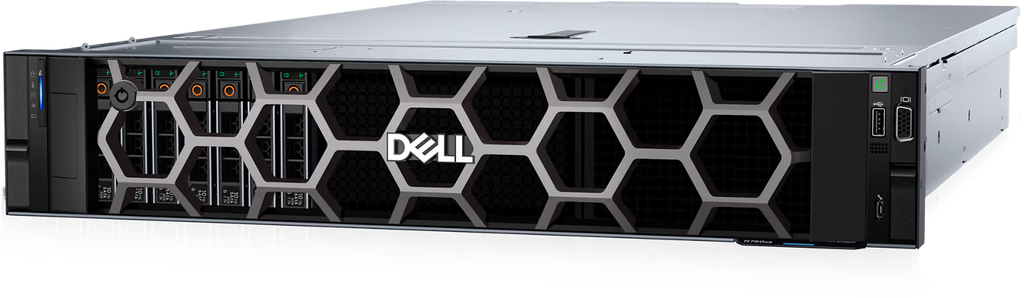

Dell PowerEdge R760xs (2X8 Core Silver) Rack Server


Price:
Sale price

Description

Processor
2x Intel® Xeon® Silver 4509Y 2.6G, 8C/16T, 16GT/s, 23M Cache, Turbo, HT (125W) DDR5-4400
Chassis Type 2.5" Chassis with up to 8/16 SAS/SATA Drives
Memory
2X 32GB RDIMM, 4800MT/s Dual Rank (Can be Extended)
HardDisk

2X 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD,

6X 1.92TB SSD vSAS Read Intensive 12Gbps 512e 2.5in Hot-Plug ,AG Drive SED, 1DWPD

Raid Controller PERC, H965i with rear load bracket
Motherboard
PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
Network Card

Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2,

Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile

Embedded Systems Management iDRAC9, Enterprise 16G
Power Supply
Dual, Hot-Plug, Fully Redundant Power Supply (1+1), 1400W, Mixed Mode
PCIe Riser
Riser Config 1, Half Length, Low Profile, 3x16 + 1x8 + 2x16 (Gen5)
Warranty 3 years ProSupport

Features of Dell PowerEdge R760xs (2X8 Core Silver) Rack Server

The Dell PowerEdge R760xs with dual 8-core Intel Xeon Silver processors is designed to provide balanced performance, scalability, and security for a wide range of applications. Here are the key features of this server configuration:

Processor

  • CPU Configuration: 2x Intel Xeon Silver processors
  • Core Count: 8 cores per processor, totaling 16 cores
  • Thread Count: 16 threads per processor, totaling 32 threads
  • Base Frequency: Varies by specific Xeon Silver model, typically around 2.1 GHz to 2.5 GHz
  • Turbo Frequency: Higher turbo frequencies for increased performance under load

Memory

  • Memory Type: DDR4 or DDR5, depending on the specific configuration
  • Memory Capacity: Up to 4TB of memory, supporting various RDIMM or LRDIMM modules
  • Memory Speed: Speeds up to 3200 MT/s or higher with DDR5

Storage

  • Drive Bays: Up to 12 x 3.5" or 24 x 2.5" drive bays, depending on the chassis
  • Storage Type: Support for SAS, SATA, and NVMe drives
  • RAID Options: Various RAID configurations supported through PERC (PowerEdge RAID Controller)

Networking

  • Network Interface Cards (NICs): Integrated dual-port 1GbE or optional dual-port 10GbE, 25GbE, or 100GbE adapters
  • Expansion Slots: Multiple PCIe 4.0 slots for additional network cards, GPUs, or other expansion cards

Management

  • Remote Management: iDRAC9 with Lifecycle Controller for remote server management
  • Console: Dell EMC OpenManage Enterprise and tools for streamlined management

Power and Cooling

  • Power Supply: Redundant hot-plug power supplies, typically 550W, 750W, or higher
  • Cooling: Advanced cooling options to ensure optimal performance under varying workloads

Security

  • Security Features: TPM 2.0, Secure Boot, System Lockdown, and other hardware and firmware-level security features

What is the Price of  Dell PowerEdge R760xs (2X8 Core Silver) Rack Server in Bangladesh?

To know the latest price of Dell PowerEdge R760xs (2X8 Core Silver) Rack Server in Bangladesh Contact With us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
