Description
| Processor |
2xIntel® Xeon® Gold 6448Y 2.1G, 32C/64T, 16GT/s, 60M Cache, Turbo, HT (225W) DDR5-4800
|
| Chassis Type | 2.5" Chassis with up to 8/16 SAS/SATA Drives |
| Memory |
2X 32GB RDIMM, 4800MT/s Dual Rank (Can be Extended)
|
| HardDisk |
2X 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD, 6X 2.4TB 10K RPM Self-Encrypting SAS 12Gbps 512e 2.5in Hot-plug Hard Drive
|
| Raid Controller | PERC, H965i with rear load bracket |
| Motherboard |
PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
|
| Network Card | Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2, Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile |
| Embedded Systems Management | iDRAC9, Enterprise 16G |
| Power Supply |
Dual, Hot-Plug, Fully Redundant Power Supply (1+1), 1400W, Mixed Mode
|
| PCIe Riser |
Riser Config 1, Half Length, Low Profile, 3x16 + 1x8 + 2x16 (Gen5)
|
| Warranty | 3 years ProSupport |

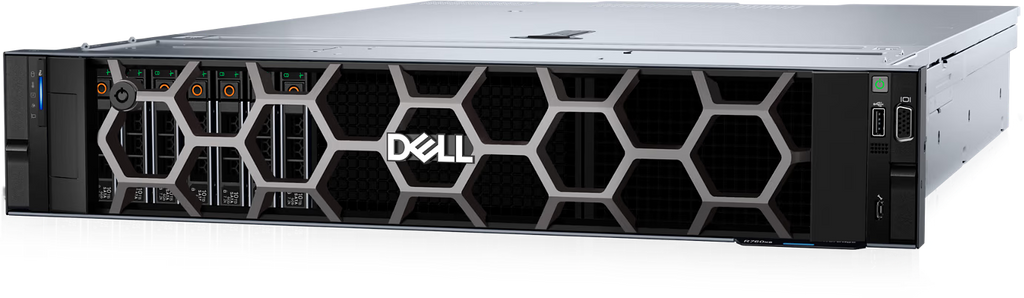

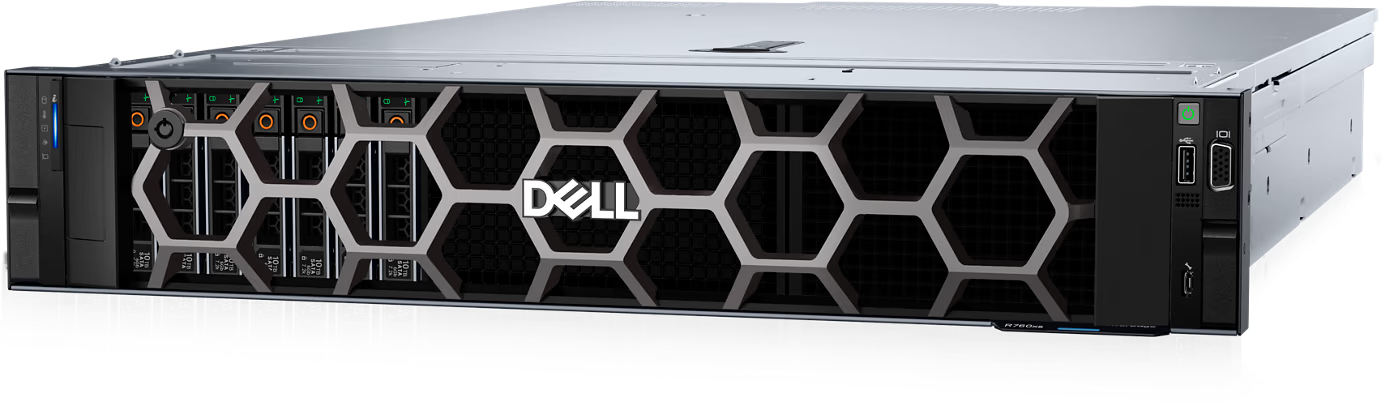

Features of Dell PowerEdge R760xs (2X32 Core Gold) Rack Server
The Dell PowerEdge R760xs rack server with 2x 32-core Intel Xeon Gold processors is a powerful enterprise-grade solution designed for high-performance computing, virtualization, and data-intensive workloads. Here are the key features:
1. Processor:
- CPUs: 2x Intel Xeon Gold processors
- Cores: 32 cores per processor, totaling 64 cores
- Threads: 64 threads per processor, totaling 128 threads
- Cache: Large L3 cache (varies by specific Xeon Gold model)
- Clock Speed: High base and boost clock speeds (varies by specific Xeon Gold model)
2. Memory:
- Capacity: Supports up to 4TB of DDR5 memory
- Type: DDR5 RDIMMs or LRDIMMs, offering higher bandwidth and lower latency
- Memory Channels: 8 channels per processor for balanced performance
- Memory Speed: Up to 4800 MT/s
3. Storage:
-
Drive Bays:
- Options for up to 16x 2.5-inch SAS/SATA/NVMe hot-plug drives
- Or 8x 3.5-inch SAS/SATA hot-plug drives
- RAID Support: Integrated RAID controllers supporting various RAID levels (0, 1, 5, 6, 10, 50, 60)
- Storage Controllers: Dell PERC H755, H755N, or S150 (for software RAID)
4. Network:
- Embedded NIC: Dual-port 1GbE LOM, with options for 10GbE, 25GbE, or 100GbE network cards
- Optional: Flexible NIC options via OCP 3.0 mezzanine cards
5. Expansion:
- PCIe Slots: Up to 8 PCIe Gen4 slots for GPUs, network cards, or storage controllers
- GPU Support: Compatible with NVIDIA GPUs for AI and machine learning workloads
6. Management and Security:
- iDRAC9: Integrated Dell Remote Access Controller for remote server management
- OpenManage Enterprise: Centralized management console for simplified IT operations
-
Security Features:
- TPM 2.0 (Trusted Platform Module)
- Secure Boot, System Lockdown, and Secure Erase
- Silicon Root of Trust
7. Power and Cooling:
- Power Supply: Redundant, hot-plug power supplies (options for 800W, 1100W, or 1600W)
- Cooling: Enhanced thermal design for optimized airflow and cooling efficiency
8. Form Factor:
- Size: 2U rack-mountable chassis
9. Operating System Compatibility:
-
Supported OS:
- Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware vSphere/ESXi
- Other major Linux distributions
What is the Price of Dell PowerEdge R760xs (2X32 Core Gold) Rack Server in Bangladesh?
To know the latest price of Dell PowerEdge R760xs (2X32 Core Gold) Rack Server in Bangladesh Contact With us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
