Description
| Processor |
2x Intel® Xeon® Gold 6426Y 2.5G, 16C/32T, 16GT/s, 38M Cache, Turbo, HT (185W) DDR5-4800
|
| Chassis Type | 2.5" Chassis with up to 8/16 SAS/SATA Drives |
| Memory |
2X 32GB RDIMM, 4800MT/s Dual Rank (Can be Extended)
|
| HardDisk |
2X 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD,
|
| Raid Controller | PERC, H965i with rear load bracket |
| Motherboard |
PowerEdge R760xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM,
|
| Network Card | Broadcom 5719 Quad Port 1GbE BASE-T Adapter, PCIe Low Profile, V2, Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile |
| Embedded Systems Management | iDRAC9, Enterprise 16G |
| Power Supply |
Dual, Hot-Plug, Fully Redundant Power Supply (1+1), 1400W, Mixed Mode
|
| PCIe Riser |
Riser Config 1, Half Length, Low Profile, 3x16 + 1x8 + 2x16 (Gen5)
|
| Warranty | 3 years ProSupport |

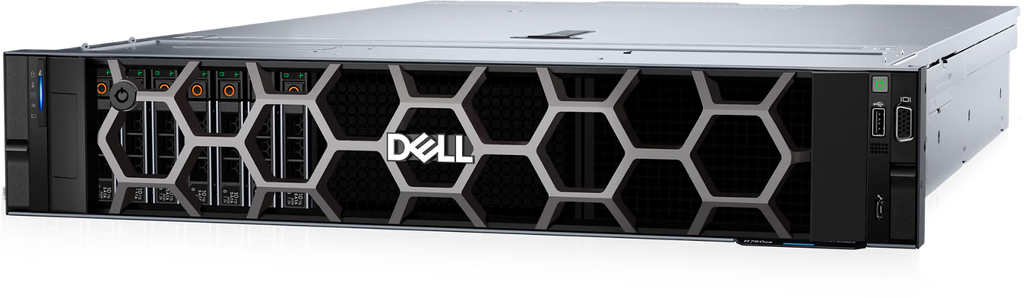

Features of Dell PowerEdge R760xs (2X16 Core Gold) Rack Server
Processor and Performance:
- Processors: Dual 16-core Intel Xeon Gold processors.
- Clock Speed: Specific clock speeds vary depending on the model but typically range from 2.1 GHz to 3.7 GHz.
- Cache: Each processor includes a substantial amount of L3 cache to improve performance.
- Hyper-Threading: Supported, enabling better parallel processing capability.
Memory:
- Capacity: Supports up to 4 TB of DDR4 or DDR5 RAM, depending on the configuration.
- Memory Speed: Supports high-speed memory modules, typically ranging from 2400 MT/s to 3200 MT/s.
- Memory Channels: Multiple memory channels for improved memory bandwidth.
Storage:
- Drive Bays: Configurable with up to 8-24 2.5” or 3.5” drives, depending on the chassis configuration.
- RAID Options: Supports RAID 0, 1, 5, 6, 10, 50, 60 for data protection and performance enhancement.
- Storage Controllers: Integrated and optional add-on controllers for flexible storage solutions.
Connectivity:
- Network Interfaces: Multiple 1 GbE and/or 10 GbE ports, with options for additional NICs.
- Expansion Slots: PCIe 3.0 or 4.0 slots available for additional network cards, storage controllers, or accelerators.
- I/O Ports: Includes USB 3.0/3.1, VGA, serial ports, and dedicated management ports.
Management and Security:
- iDRAC: Integrated Dell Remote Access Controller for comprehensive remote management and monitoring.
- Security Features: TPM 2.0, Secure Boot, System Lockdown, Secure Erase for enhanced data security.
- Monitoring: Hardware monitoring and alerting capabilities ensure server health and uptime.
Power and Cooling:
- Power Supply Units (PSUs): Redundant hot-swappable PSUs in various power ratings (e.g., 500W, 750W, 1100W) for reliable operation.
- Cooling: Advanced cooling solutions with hot-swappable fans and efficient thermal management.
Software and OS Support:
- Operating Systems: Supports a wide range of operating systems, including Windows Server, various Linux distributions, and VMware ESXi.
- Virtualization: Optimized for virtualized environments with support for VMware, Hyper-V, and other hypervisors.
Form Factor:
- Rack Unit: Typically available in a 2U rack-mountable chassis.
What is the Price of Dell PowerEdge R760xs (2X16 Core Gold) Rack Server in Bangladesh?
To know the latest price of Dell PowerEdge R760xs (2X20 Core Gold) Rack Server in Bangladesh Contact With us. To buy this Server please visit our online store Silicon Computing Ltd. to get the best price in BD.
