Description
| Controller Model | Dell PERC 4e/DC |
| Interface | PCI Express (PCI-E) |
| Bus Type | Ultra320 SCSI |
| Bit Depth | 64-bit |
| RAID Levels Supported |
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
|
| Cache Memory | 128MB |
| Data Transfer Rate |
Up to 320 MB/s per channel (Ultra320 SCSI)
|
| Drive Support | Supports up to 30 SCSI hard drives |
| Drive Interface |
SCSI (Small Computer System Interface)
|
| Compatibility |
Compatible with Dell PowerEdge servers and workstations
|
| Battery Backup Unit (BBU) Support |
Yes, supports optional Battery Backup Unit (BBU)
|
| Hot-Swappable Support |
Yes, supports hot-swapping of drives
|
| Management Software |
Dell OpenManage Storage Management
|
| Operating Systems Support |
Windows, Linux, and other supported OS
|
| RAID Management Interface |
BIOS configuration utility, RAID management software
|
Features of Dell PERC 4e/DC U320 64-bit SCSI PCI-E RAID Controller 128MB X6847

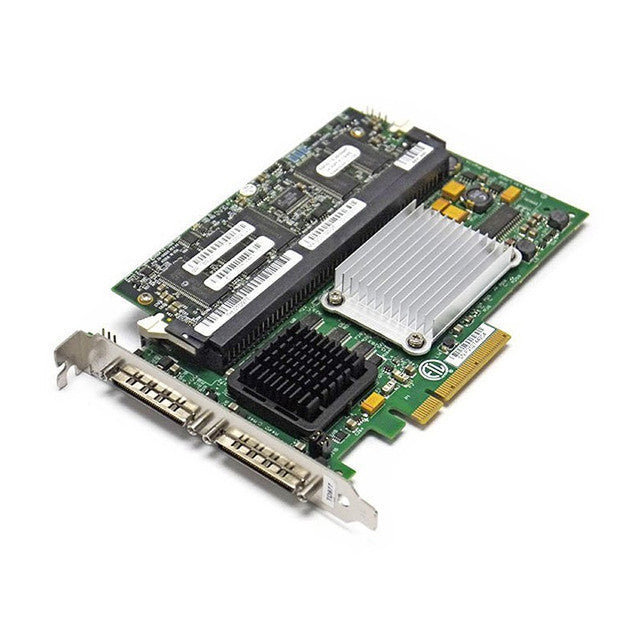

The Dell PERC 4e/DC (PowerEdge RAID Controller) U320 64-bit SCSI PCI-E RAID Controller is a storage controller designed for Dell PowerEdge servers. It is specifically used for managing RAID (Redundant Array of Independent Disks) configurations to provide data redundancy, performance improvement, and fault tolerance for storage devices.
Here are some key features of the Dell PERC 4e/DC RAID Controller:
-
Interface: It uses a PCI-Express (PCI-E) interface to connect to the server's motherboard, providing faster data transfer rates compared to older PCI interfaces.
-
RAID Support: The controller supports various RAID levels, including RAID 0, RAID 1, RAID 5, RAID 10, and RAID 50. Each RAID level offers different benefits in terms of data protection and performance.
-
U320 SCSI Support: The PERC 4e/DC RAID Controller supports the Ultra320 SCSI interface, which allows for faster data transfer rates and improved performance for connected SCSI drives.
-
Cache Memory: The controller comes equipped with 128MB of cache memory, which helps improve read and write performance by caching frequently accessed data.
-
Disk Connectivity: It supports up to 8 SCSI hard drives or solid-state drives (SSDs) that can be connected to the RAID controller.
-
Compatibility: The controller is designed for Dell PowerEdge servers and should be compatible with specific models that have the necessary PCI-E slots and support for U320 SCSI devices.
What is the price of Dell PERC 4e/DC U320 64-bit SCSI PCI-E RAID Controller 128MB X6847 in Bangladesh?
To know the latest price of Dell PERC 4e/DC U320 64-bit SCSI PCI-E RAID Controller 128MB X6847 in BD contact with us. To buy this please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
