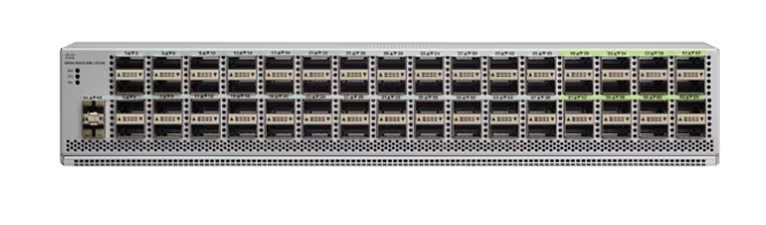

Cisco Nexus 9364C Switch
| Device | N9K-C9364C-GX |
| Ports | 64 x 100/40-Gbps QSFP28 ports |
| Supported speeds | 40/100-Gbps Breakout supported: 2×50, 2×25, 2×10 on all ports 4×10, 4x25G on all odd numbered ports 10G w/QSA |
| CPU | 4 cores |
| System memory | Up to 32 GB |
| SSD Drive | 128 GB |
| System buffer | 80 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP |
| USB Ports | 1 |
| RS-232 serial ports | 1 |
| Power Supplies | 2000W AC, 2000W DC, 2000W HVAC/HVDC |
| Typical power (AC) | 811W |
| Maximum power (AC) | 1622W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) |
100 to 277V |
| Input voltage (DC) | –40 to –72V |
| Input voltage (High-Voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 3+1 redundancy |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
Dimensions (H x W x D): 3.39 x 17.41 x 22.59 in. (8.61 x 44.23 x 57.4 cm) |
| Acoustics | 77.3 dBA at 50% fan speed, 88.6 dBA at 70% fan speed, and 95.8 dBA at 100% fan speed |
| RoHS compliance | Yes |
| Mean Time Between Failure (MTBF) | 237,760 hours |
| Minimum ACI image | ACI-N9KDK9-14.2(3) |
| Minimum NX-OS image | NXOS-9.3.3 |
| ACI spine | Yes |
| ACI leaf | Yes |
Features of Cisco Nexus 9364C Switch
The Cisco Nexus 9364C Spine Switch is a robust and high-performance networking device designed for data centers. Let’s explore its key features:
Bandwidth and Ports:
The Nexus 9364C is a 2-Rack-Unit (2RU) switch that supports an impressive 12.84 Tbps of bandwidth.
It features 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports.
The last 16 ports are capable of wire-rate MACsec encryption1.
Cloud Scale Technology:
Built on Cisco Cloud Scale technology, this platform enables cost-effective, ultra-high-density cloud-scale deployments.
It accommodates an increased number of endpoints and cloud services while ensuring wire-rate security and telemetry.
Innovative Technologies:
Media Access Control Security (MACsec): Provides traffic encryption at the physical layer, enhancing security for server, border leaf, and leaf-to-spine connectivity.
Virtual Extensible LAN (VXLAN): Facilitates network virtualization and overlay solutions.
Tunnel endpoint VTEP-to-VTEP overlay encryption: Enhances data privacy in VXLAN environments.
CloudSec: Supports secure communication in cloud deployments.
Streaming Statistics Export (SSX): Hardware-based statistics collection for better network performance analysis without impacting the switch control plane or CPU.
Operating Modes:
The Nexus 9364C can operate in either Cisco ACI Spine mode or NX-OS mode.
In ACI mode, it takes full advantage of an automated, policy-based systems-management approach.
In NX-OS mode, it functions as a standard Cisco Nexus switch1.
Physical Specifications:
64-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports.
Buffer: 40MB.
System memory: 32GB.
SSD: 128GB.
USB port: 1.
Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP).
Broadwell-DE CPU: 4 cores
What is the price of Cisco Nexus 9364C Switch in Bangladesh?
To know the latest price of Cisco Nexus 9364C Switch in BD contact with us . To buy this please visit our online store Silicon Computing Ltd. to get the best price in Bangladesh.
